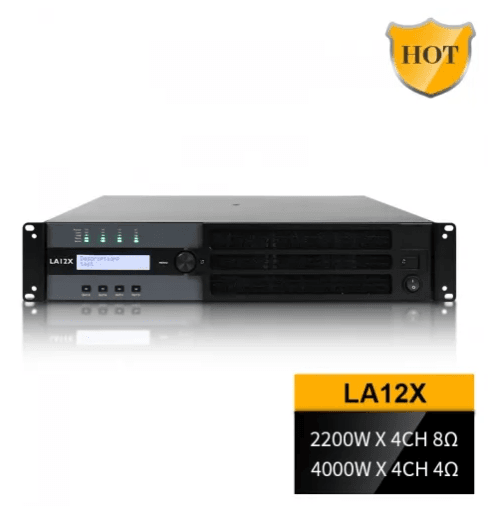

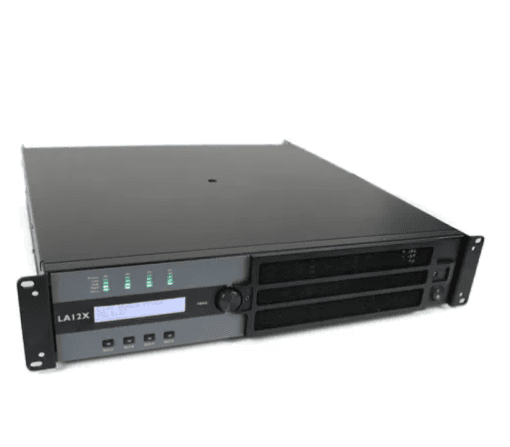

4 input 4 output LA12X Professional DSP Software Control class td power Amplifier for subwoofer
| Model | LA12X |
| 8 ohm Stereo Power(RMS) | 2200W *4CH |
| 4 ohm Stereo Power (RMS) | 4000W *4CH |
| Frequenty Response | 20Hz-20kHz ±0.5dB |
| THD+N(Rated power,4Ω/KHz)% | 0.10% |
| Signal Noise Ration(dB) | 110dB |
| Input Impedance | 20KΩ Balanced / 10kΩ Unbalanced |
| Output Connectors | Speak on Connectors |
| Power Requirement | 110-120V / 50-60Hz or 200-240V / 50-60Hz |
►4 Channel Class TD Switching power amplifier with DSP
►Create SUPER sound quality
►Control the sound effect DSP software on Computer
►Simple DSP software,no need install,easy operate it
►Bridge-mode operation for Touring Applications
►Comprehensive protection scheme

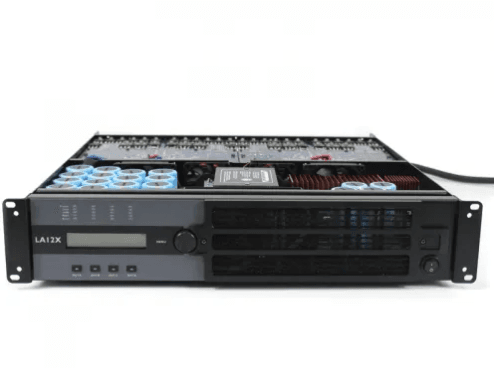

►Use Original Siemens high quality capacitor 14pcs 3300uf 200V +4pcs 2200uf 200V
►Use Original ONSEMI transistor

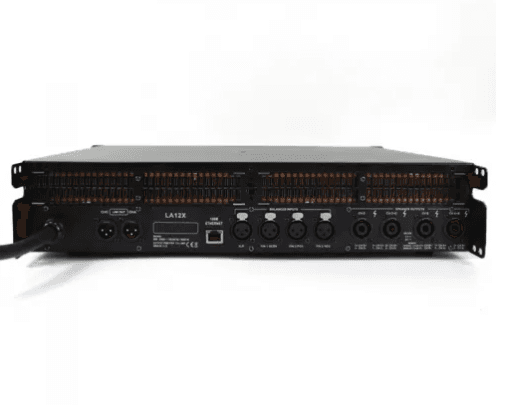

►Original Neutrik XLR*/Speakon connectors
►High efficient cooling. Extended heatsink board to 95 mm.
►Temperature protection;Over current protection;Short circuit protection built-in
Connect the computer for DSP software operation, which is equivalent to the work of a processor.
DSP Function:In Level,Gate,Feedback,In Filter,In Limiter,In Delay,Matrix,Signal,Out Level,Out Filter,Out Limiter,Preset,Settings,Security etc.
This DSP has below feature:
● It suit for Win 7 Win10 and MAC system;
● ADSP-21488 400Mhz floating-point DSP
● Dynamic range 110dBu
● Input 16 PEQs and Output 16 PEQs
● Time-Delay CH1-4 : 218ms, CH5-8 : 168ms
● Two 100M Ethernet interfaces
● PC Software Automatic Discovery Processor
● 32 system presets
● Fast copy of channel parameters
● Upgrade DSP and ARM firmware through Ethernet
● Any Module Function Parameter are Hidden and Read – Only
Project | Technical indicators |
Max input level | 18dBu |
Max output level | 18dBu |
Default output level | 0dBu |
Harmonic Distortion THD+N | <0.0045%；1kHz@+4dBu <0.0045%；1kHz@+10dBm <0.0035%；20Hz～20kHz@+4dBu |
Frequency response | 20Hz-20kHz, +/-0.2dB |
Dynamic range | 110dB |
Signal to noise ratio | -110dB |
ADC dynamic range | CS5361 114dB |
DAC dynamic range | CS4382A 114dB |
DSP | 400Mhz Float SHARC ADSP-21488 |
Sampling frequency | 48K |
Quantify | 24Bit |
Store Settings | 32 |
Control mode | 100M |
Control Software Language | English / Chinese |
noise gate | Have |
Feedback Suppressors | Have |
Signal generator | Have |
Limiter | A total of 12 independent |
Delayer | CH1-4：218ms，CH5-8：168ms |
PEQ Low Shelf High Shelf | 16 independent segments front and rear |
High Pass/Low PassBessel Butterworth Link-Riley | A total of 12 independent-6dB/oct -12dB/oct -18dB/oct -24dB/oct -36dB/oct -48dB/oct |
Levertijd 2 a 3 werkdagen
| Audio Merk | DJL Audio |
|---|---|
| Kleur | Zwart |
DJL Audio LA12X DSP 8Ω Stereo Power (RMS): 2200W X 4CH 4Ω Stereo Power (RMS): 4000W X 4CH
€ 1.999,00
