Model: D4-1500 DSP
Channel: 4-channel power amplifier
Feature: 1U/Digital Amp/2 Ohms Stable
Output Power:
8Ω Stereo Power (RMS): 1,500W X 4CH
4Ω Stereo Power (RMS): 2,500W X 4CH
2Ω Stereo Power (RMS): 3,000W X 4CH
Warranty: 3 Years
D4-1500 DSP Class D Audio AMPLIFIER Feature:
| ●1U ultra-thin body, lightweight and compact design |
| ●Imported Japanese NCC capacitors for high-quality sound output |
| ●GaN gallium nitride material, low heat generation, less noise, and low distortion! |
| ●Strong bass, full and sweet mid range, clear and delicate high-frequency |
| ●High efficiency, energy conservation, and environmental protection. Saving operating expenses. |
| ●With active PFC and soft-switching technology, the power correction factor can reach up to 0.99, providing strong adaptability. |
| ●Work under wide voltage range of 90V-270V, allowing it to adapt to harsh power grid environments and provide continuous power supply. |
| ●With stable and reliable 2Ω driving capability, it is perfectly suited for line array speaker systems. |
| ●Standby sleep mode, power-saving and durable |
| ●ROHS and CE certified, with national quality inspection reports and energy-saving and environmental certifications, compliant with various 3C tests. |
| ●High-end components from top international manufacturers, with advanced and reliable circuits. |
| ●Strict and reliable production processes and user experience testing |

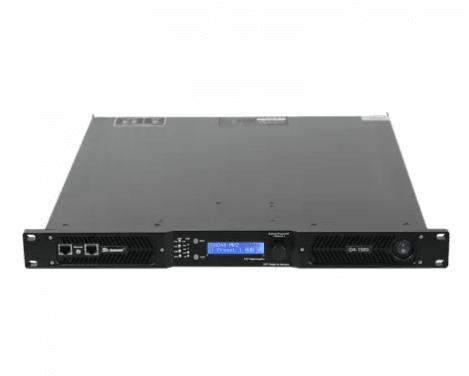

FRONT PANEL FEATURE

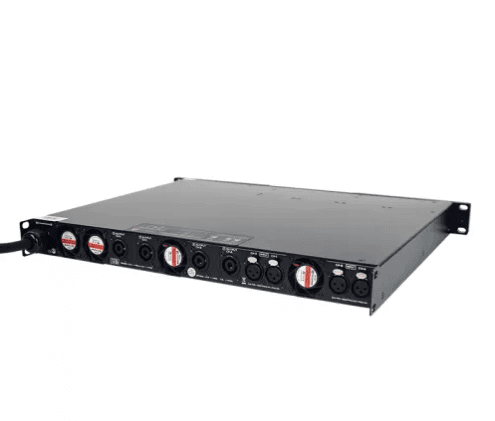

REAR PANEL FEATURE
Dimensions and Cooling system
NOTE: The size is 437mm inside of the device(without the cover plate and front panel).The size is around 472mm of the complete device,but a little bit different size in the different front panels.Some series with different size have not shown,please learn it in the parameter. Tunnel through cooling system |  |
ALLDSP ALLControl
The new D series digital amplifier also has the option to add a DSP function, Our D series DSP amplifier uses an ALLDSP system from Germany. It is suited for Windows, Mac and ios systems.
The application for iPad or iPhone can be downloaded and installed from the Apple Store.
Parameters of DSP Module | |
Digital signal processor | 64 bit multimode, 4 in and 4 o]ut |
AD converter | 120db Dynamic Range |
DA converter | 110db Dynamic Range |
Storage preset | 100 |
Signal input | Analog/optional Dante |
Delay range | 0-10ms |
Equalizer | 5-segment grouping equalization, 10 segment input/output equalization |
Frequency division filter | Linkwitz Reiley, Belsel, Butterworth |
FIR filter | 4x144taps |
Levertijd 2 a 3 werkdagen
| Audio Merk | DJL Audio |
|---|---|
| Kleur | Zwart |
DJL Audio D4-1500 FIR Filter High Power Supply Audio DSP Amplifier for Speakers 4x3000W
€ 1.475,00
