Name: DJL Audio D4-1500 Best Class D DJ Gane Line array Digital Amplifier 4x1500W
SKU: 18393
Availability: InStock

Beschrijving

Model: D4-1500
Channel: 4 channel power amplifier
Feature: 1U/Digital Amp/2 Ohms Stable
Output Power:
8Ω Stereo Power (RMS): 1,500W X 4CH
4Ω Stereo Power (RMS): 2,500W X 4CH
2Ω Stereo Power (RMS): 3,000W X 4CH
Warranty: 3 Years

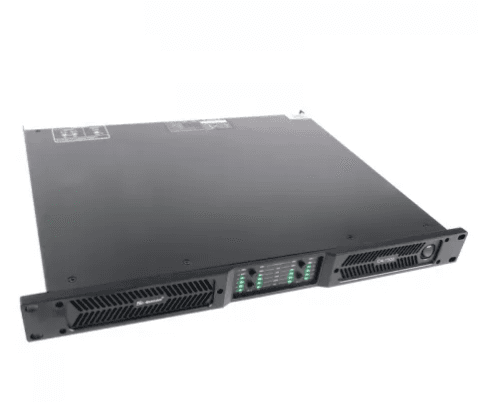

D4-1500 DIGITAL POWER AMPLIFIER

●1U ultra-thin body, lightweight and compact design

●Imported Japanese NCC capacitors for high-quality sound output

●GaN gallium nitride material, low heat generation, less noise, and low distortion!

●Strong bass, full and sweet mid range, clear and delicate high-frequency

●High efficiency, energy conservation, and environmental protection. Saving operating expenses.

●With active PFC and soft-switching technology, the power correction factor can reach up to 0.99, providing strong adaptability.

●Work under wide voltage range of 90V-270V, allowing it to adapt to harsh power grid environments and provide continuous power supply.

●With stable and reliable 2Ω driving capability, it is perfectly suited for line array speaker systems.

●Standby sleep mode, power-saving and durable

●ROHS and CE certified, with national quality inspection reports and energy-saving and environmental certifications, compliant with various 3C tests.

●High-end components from top international manufacturers, with advanced and reliable circuits.

●Strict and reliable production processes and user experience testing

FRONT PANEL FEATURE

REAR PANEL FEATURE

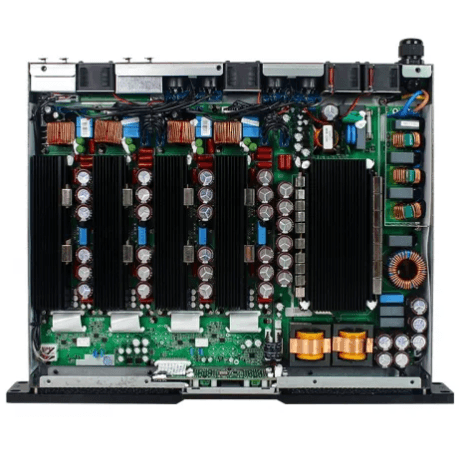

Dimensions and Cooling system

NOTE:
The size is 437mm inside of the device(without the cover plate and front panel).The size is around 472mm of the complete device,but a little bit different size in the different front panel.Some series with different size that had not shown,please learn it in the parameter.Tunnel through cooling system
Cold air comes in from the front panel of the equipment, forms a duct through the radiator to take the heat away and out from the rear panel of the equipment.
