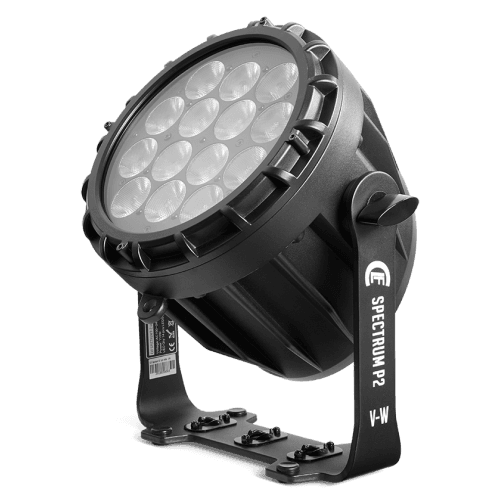

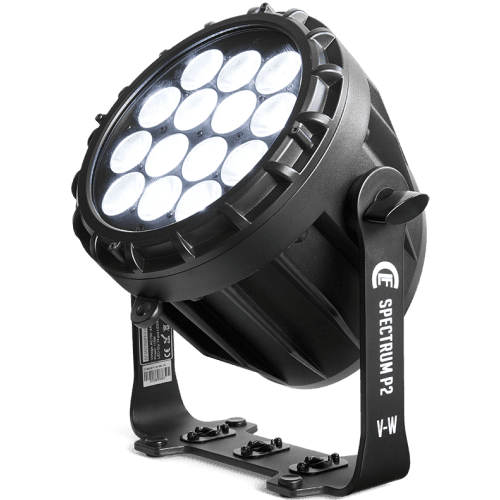

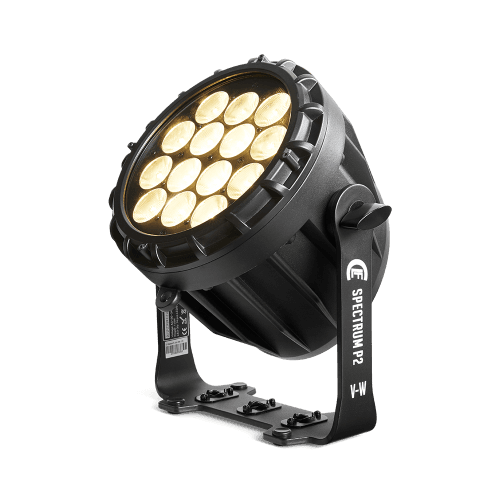

CLF – Spectrum P2 VW
The CLF Spectrum P2 VW features high output and a very precise white control between 2700K and 6500K. A CRI level of 90 and accurate dimming control make the CLF Spectrum P2 VW very suitable for any high demanding application. A very homogenous 15° beam angle is delivered by the 14 high power LEDs which are specially selected. IP65 rating makes the Spectrum P2 suitable for both in- and outdoor use.

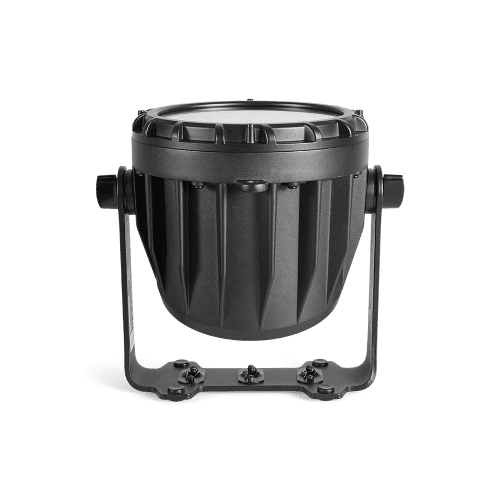

A unique single bracket design provides both standing and hanging opportunities, all in a touring-ready aluminum housing. The LCD display offers easy access to the menu settings and manual control. Silent operation is ensured because of the intelligent cooling system. Data and power can be connected through the IP65 5 pin locking XLR and PowerCON TRUE1 connectors.

Input Voltage & Rate 100-240V, 50/60Hz
Standby power 7W
Nominal Total Power Consumption
(at Nominal voltage 230V) 107.5W
Typical Current (at Nominal voltage 230V) 0.534A
Cos φ 0,834
Power Plug Type Seetronic PowerCON True
LED Color Vari-White
LED Color Temperature 2700 K – 6500 K
LED CRI level 90
Quantity of LED 14 pc
Dimming frequency 600/1200/2400/4800
Dimmer resolution 16bit
Beam angle 15 °
Output @1M 38.100 lux
Output @5M 1.760 lux

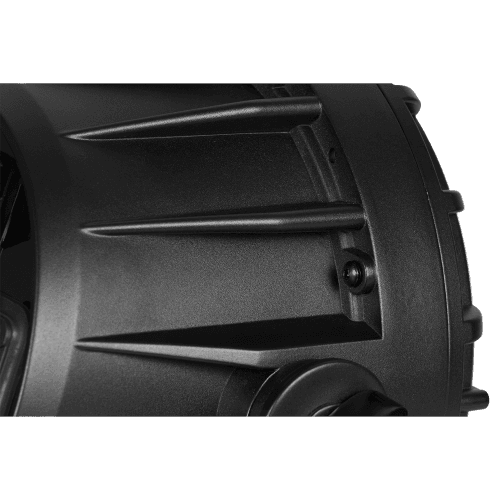

Cooling type: Passive cooling
MAX. Ambient temp (Ta max) 35 °C
MIN. Ambient temp (Ta min) 25 °C
MAX housing temp.(ta=25℃) 42,5 °C
MAX housing temp.(ta=40℃) 57 °C
AUTO program Yes
Static Color Yes
Manual Calibration Yes
Factory calibration Yes
Strobe speed 0 – 20Hz
Random strobe Yes
Control Protocol USITT DMX512/1990
DMX Channel Range 2 / 3 / 4 / 5 / 6
RDM Yes
RDM compliance ANSI/ESTA E.120
WDMX No
ACN No
DMX input connection IP65 DMX 5 pin in en out
Data input (artnet, SACN) No
Interface Backlite LCD display
Software upload method XLR
Location Outdoor
IP rating IP65
Net product weight 3,8 kg
Machine Dimensions – Length 260 mm
Machine Dimensions – Width 180 mm
Machine Dimensions – Height 290 mm
Included items Power cable, manual
Approved certifications CE, RoHS
