Beschrijving

Control surface 3-screen

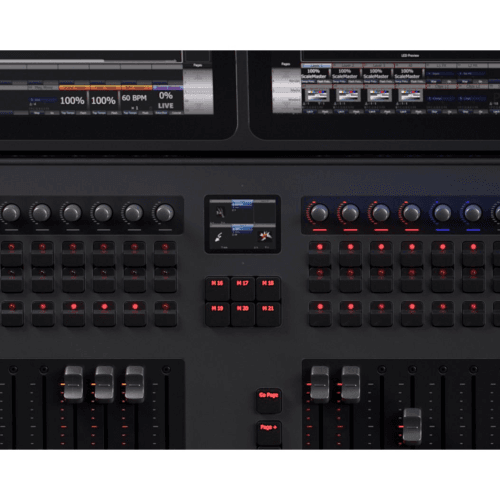

30 motorised touch-sensitive penny & giles faders – designer fader cap
11-segment rgb led level indicator alongside each fader
Halo RGB for each playback
70 optical rotary touch sensitive playback encoders with push function – designer knob
11-segment rgb led level indicator alongside each encoder
RGB halo for each encoder
180 c&k playback function buttons with positive haptics for timing – designer button cap
70 optical rotary assignable encoders with push function – designer knob
3 x 15.6″ 1000nits 1920*1080 capacitive touchscreens with adjustable brightness

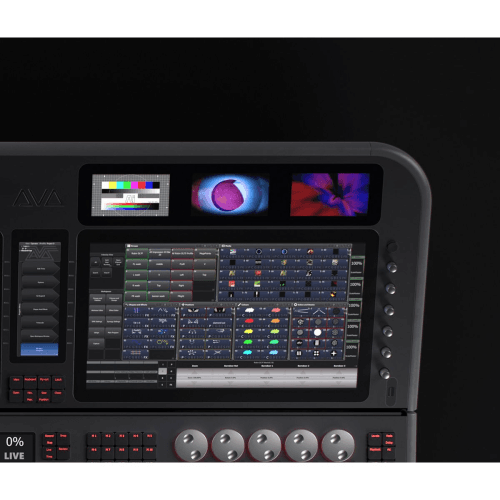

3 x 4.3″ 1000nits 800×480 preview touchscreens for media or workspaces

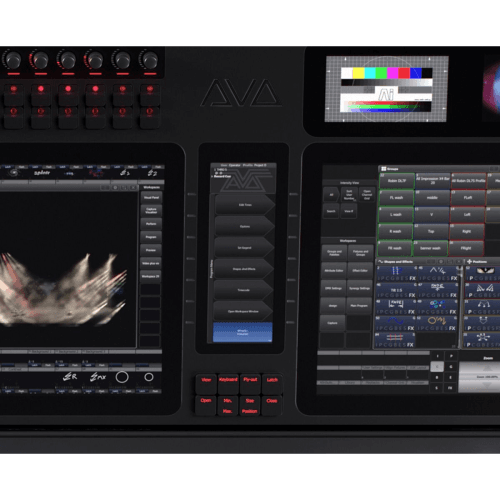

Softkey menu touchscreen
Independent paging for each playback section
Programming buttons all RGB backlit, short travel cherry® mx low profile switches
5 custom RGB backlit optical attribute encoders
Dedicated level wheel, machined aluminium with colour lcd status screen

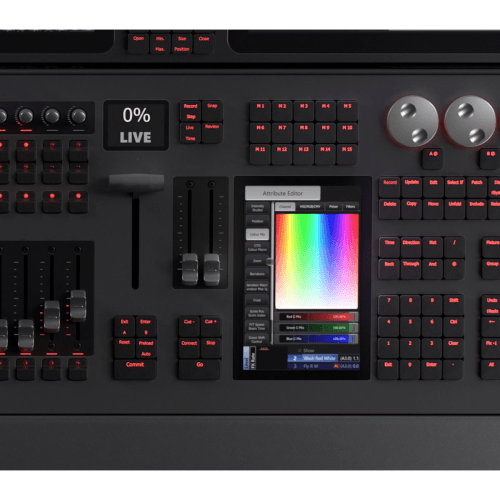

T-bar with 5 control buttons and a colour lcd status screen
Dual, motorised, touch-sensitive, master cue list fader control with 9 buttons
7″ dual-touch high-brightness 800*1280 programming screen
Full custom backlit qwerty keyboard in drawer, keys identical to program panel

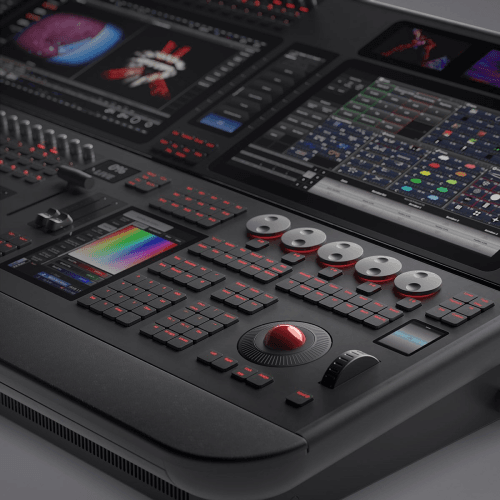

X, y, z, optical trackball
21 backlit macro / executor keys, all screen-labelled
Supports two additional hdmi 1920*1080 touchscreens
DMX512

8 x Neutrik 5-pin XLR, optically and galvanically isolated with halo assignment indicators
Network

4 x 1GBE Neutrik EtherCON, internally switched & managed
1 x quad OpticalCON 1GBE lc connection
1 x 1GB EtherCON, network 2
optional upgrade to add:
1 x 10GBE connection to OpticalCON
1 x 10GBE Neutrik EtherCON
Data / peripherals

1 x USB 3.1 under armrest
1 x USB 3.1 on front panel
2 x USB 3.1 back panel
2 x USB 2.0 assigned for external touchscreens
External display

2 x HDMI up to 1920*1080
SMPTE

1 x 3-pin Neutrik XLR transformer isolated input with signal indicator plus 3-pin
XLR loop out
Trigger inputs

GPIO 4 in/4 out, isolated, and dry contacts
¼” jack for foot switch
DMX512 dedicated input with indicator
Audio input 3-pin XLR with indicator
Midi

In, thru, out on 5-pin din with signal and enabled indicators, usb midi supported
Audio out

Digital S/PDIF RCA
Mains power

Neutrik TRUE1®
Power

Work light switch controlling connector panel illumination
Neon indicator for mains supply and PSU energized
Internal UPS for console and internal data switch
110-240VAC mains supply max draw of 650W
Computer

Intel i7-9700K processors
16GB RAM
AMD WX5100 GPU

Levertijd 7 weken
